Details about  12V DC Cooling Brushless Motor Water Pump 480L/H, 5.8W High-Quality Brand NEW

12V DC Cooling Brushless Motor Water Pump 480L/H, 5.8W High-Quality Brand NEW See original listing
Item Ended
Item condition:
Brand New
06 Mar, 2014 01:19:37 AEDST
AU $32.84
FREE Standard Postage | See details
Item location:
Sydney, Australia

More chances to get what you want Feedback on our suggestions


eBay item number:
Seller assumes all responsibility for this listing.
Last updated on  17 Feb, 2014 23:50:01 AEDST  View all revisions

Item specifics

Brand New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition

12V DC Cooling Brushless Motor Water Pump 480L/H, 5.8W High-Quality Brand NEW


12V DC Brushless Magnetic Drive Water Pump DC40A-1220

DC 480mA Current & Max. 2.0m(Lift Height)

5.8W & Max. 480L/H(Flow)

  • Magnetic Drive. The stator and circuit board are sealed by epoxy resin, which are completely isolated with rotor
  • Super long working life(more than 30000 hours)
  • Adopt high performance ceramic shaft
  • The axis is enclosed with static sealing, not dynamic,  which can avoid leaking problems
  • Amphibious design
  • High efficiency with low consumption & low noise(less than35db)


This product can be used in many fields, such as computer cooling system, Garden fountain, Aquarium, car cooling system, humidifier, air conditioner, and many other cooling and circulation systems.


DC40A Series:

We have a wide range of water pumps with different specifications, please find the following list of all DC40A Series for your reference:
Model Voltage(V) Current(mA) Max Head(m) Max Flow(L/H) at zero head  Power(W)
DC40A-0510 5 650 1.5 320 3.25
DC40A-0615 6 650 1.5 320 4
DC40A-0920 9 550 2 350 4.95
DC40A-0925 9 600 2.5 400 5.5
DC40A-0930 9 930 3 500 8.5
DC40A-1215 12 350 1.5 400 4.5
DC40A-1220 12 480 2 480 5.8
DC40A-1225 12 520 2.5 500 6.3
DC40A-1230 12 700 3 600 8.5
DC40A-1235 12 850 3.5 620 10.5
DC40A-1240 12 950 4 630 11.4
DC40A-1245 12 1000 4.5 640 12
DC40A-2425 24 350 2.5 550 8.4
DC40A-2430 24 480 3 580 11.5
DC40A-2435 24 550 3.5 600 13.2
DC40A-2440 24 680 4 650 16
DC40A-2445 24 850 4.5 700 20.5
DC40A-2450 24 950 5 720 22.8
DC40A-2455 24 1050 5.5 730

Note: Maximum liquid temperature: 60°C, 172F

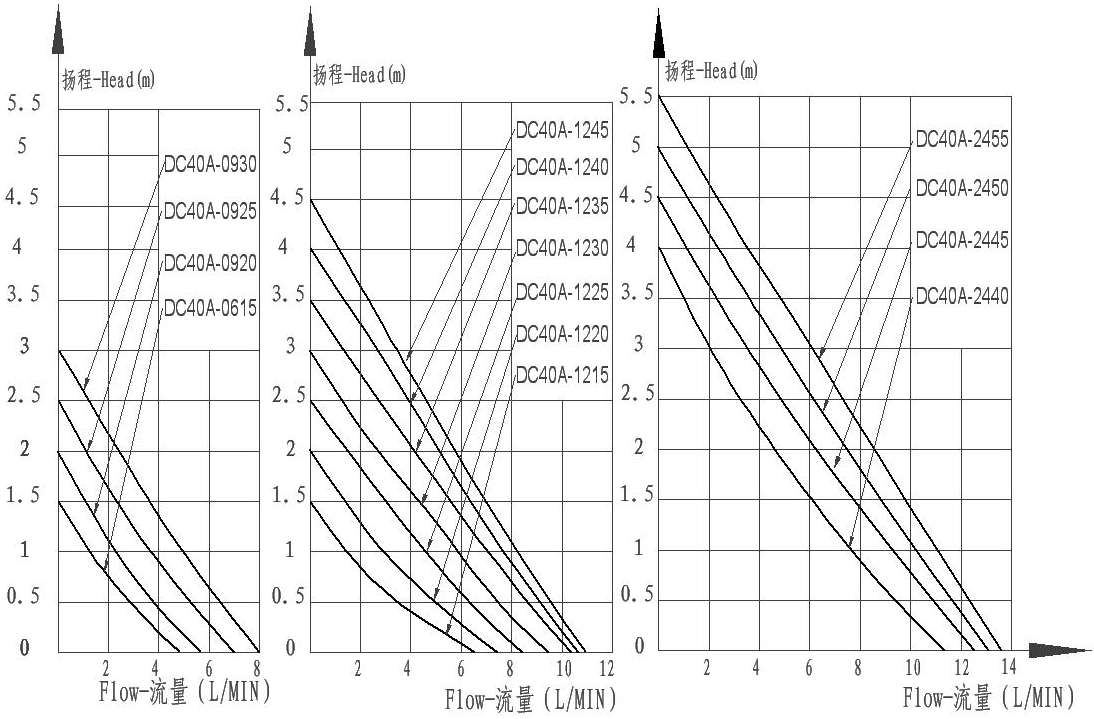

Head-Flow Curve Graph:



Model Number DC40A-1220
Material Case is PA66, Sleeve is Ceramic Shaft
Installation Environment Submersible or below liquid surface
Diameter of Inlet 13.8mm
Diameter of Outlet 13.3mm
Power Supply DC12V/480mA
Max Flow 480L/H
Max Head(lift height) 2.0M
Power 5.8W
Max Water Pressure 5 Bar
Waterproof Level IP68
Max Operating Temp 60°C/172F
Working Life More than 30,000 hours
Power Cord 1.0M(bared)
Weight approx. 270g


1.Does the Head mean i can use the pump to pump water(or other liquid) up to the height directly?

No, the pump can lift to the max height when there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump(refer to the above Head-Flow Curve graph). the Head means when you connect a little hose on the output of pump, the max height of the pump can pump, if you do not connect a little hose on it, it can not pump water to the height in AD.
2.Can i connect it on my solar panel?

No, if you want to connect a pump on solar panel, we recommend you use our 3 phase pump which has the External circuit board.

3.Can i dry run the pump(run but not pump water)?
No, Dry run the pump will damage the pump and shorten the working time of the pump.


1.The black box contains the circuit board, it is not a transformer, the input voltage should be less than DC12V. External circuit board is designed for sustaining water temperature up to 100°C.

2. This pump is centrifugal pump, it can't vent the air automatically, so it must be operated by submersible installation.(if outside installation, you should make sure it is below the liquid surface)

3. When blocking, long-running is not allowed.

4. Preventing any hard particles entering the pump.

The following picture is just for reference:



  • 1 x Water Pump
  • 1 x Adapter Plate
