Details about  12V Dc 1000L/h 8.0M Max Head Micro Solar Pump Brushless Motor Water Pump NEW

See original listing
12V Dc 1000L/h 8.0M Max Head Micro Solar Pump Brushless Motor Water Pump NEW
12V-Dc-1000L-h-8-0M-Max-Head-Micro-Solar-Pump-Brushless-Motor-Water-Pump-NEW
Item Ended
Item condition:
Brand New
Ended:
23 Jun, 2014 10:52:31 AEST
Price:
AU $65.79
Postage:
FREE Standard delivery from outside AU | See details
Item location:
HK, Hong Kong

Description

eBay item number:
351078761690
Seller assumes all responsibility for this listing.

Item specifics

Condition:
Brand New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition


12V Dc 1000L/h 8.0M Max Head Micro Solar Pump Brushless Motor Water Pump NEW

Descriptions

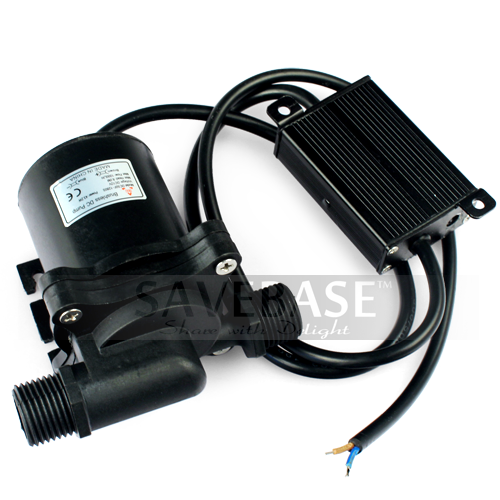

12V DC Water Pump with Brushless Motor DC50F-1280S

Max 8m Water Height, & 1000L/H, Current 3.6A


Key advantages:

Ø
Brushless, permanent magnetic rotor, maintenance-free, long life

Ø Small size, high efficiency, low consumption, low noise

Ø Stator and circuit board sealed by epoxy resin

Ø The axis is enclosed with static sealing, not dynamic, which can avoid leaking problems

Ø Adopt high performance ceramic shaft

Ø Amphibious design

Ø Submersible installation and entirely waterproof

Head-Flow curve graph:



Note: Maximum liquid temperature: 100°C, 212F

Dimension:



Specifications

NO

Items

Specs

1

Sizes and weight

94.1x50; 480g

2

Dimension of inlet

20mm(1/2 inch thread)

3

Dimension of outlet

20mm(1/2 inch thread)

4

Driving method

Brushless, Magnetic , 3 phase

5

Pump material

PA66+GF30% (optional)

6

Condition of use

Continuously

7

Fluids

Water, oil, gasoline, acid and alkali solution

8

Max flow rate

20L/MIN(4.5G/MIN) — 3 phase



9

Noise

<40dB

10

Water proof class

IP68(can be submersible installed)

11

Life span

More than 30000hrs

12

Power supply

Solar panel; DC electric source; battery



FAQ:

1.Does the Head mean i can use the pump to pump water(or other liquid) up to the height directly?

No, the pump can lift to the max height when there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump (refer to the above Head-Flow Curve graph).the Head means when you connect
a little hose on the output of pump, the max height of the pump can pump, if you do not connect a little hose on it, it can not
pump water to the height in AD.

2.Can i connect it on my solar panel?

Yes, you can, but you should make sure the output voltage of your solar panel stable and less than DC12V, or it will damage the pump.

3.Can i dry run the pump(run but not pump water)?

No, Dry run the pump will damage the pump and shorten the working time of the pump.

Note:

1.The black box contains the circuit board, it is not a transformer, the input voltage should be less than DC12V. External circuit board is designed for sustaining water temperature up to 100°C.

2. This pump is centrifugal pump, it can't vent the air automatically, so it must be operated by submersible installation.(if outside installation, you should make sure it is below the liquid surface)

3. When blocking, long-running is not allowed.

4. Preventing any hard particles entering the pump.

The following picture is just for reference:




Contents

  • 1 x Water Pump
  • 1 x Adapter Plate
