3800mA Current & 4.0m Water Height
45.6W & 2000L/H
External Circuit Board
This product can be used in many fields, such as computer cooling system, Garden fountain, Aquarium, car cooling system, humidifier, air conditioner, and many other cooling and circulation systems.
We have a wide range of water pumps with different specifications, please find the following list of all DC50D Series for your reference:
Note: Maximum liquid temperature: 100°C, 212F

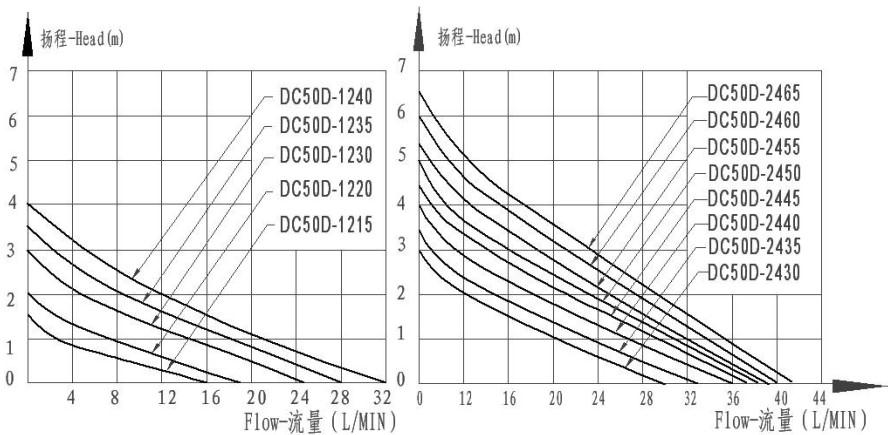

Head-Flow Curve Graph:
|Max Operating Temp||100°C, 212F|
|Working Life||More than 30,000 hours|
|Inlet & Outlet||Horizontal|
No, the pump can lift to the max height when there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump(refer to the above Head-Flow Curve graph). the Head means when you connect a little hose on the output of pump, the max height of the pump can pump, if you do not connect a little hose on it, it can not pump water to the height in AD.
Yes, you can, but you should make sure the output voltage of your solar panel stable and less than DC12V, or it will damage the pump.
3.Can i dry run the pump(run but not pump water)?
1.The black box contains the circuit board, it is not a transformer, the input voltage should be less than DC12V. External circuit board is designed for sustaining water temperature up to 100°C.
2. This pump is centrifugal pump, it can't vent the air automatically, so it must be operated by submersible installation.(if outside installation, you should make sure it is below the liquid surface)
3. When blocking, long-running is not allowed.
4. Preventing any hard particles entering the pump.

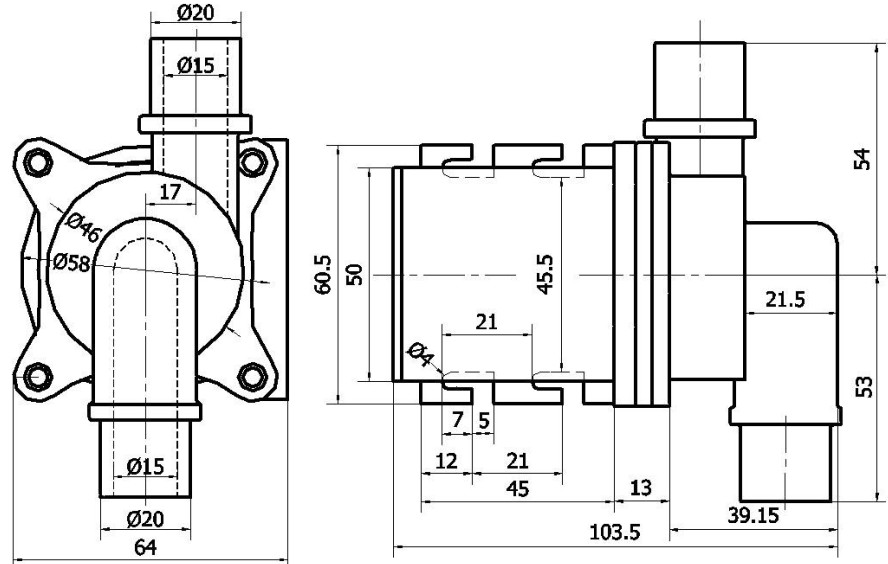

The following picture is just for reference：
- 1 x Water Pump
- 1 x External Circuit Board
- 1 x Adapter Plate
