FAQ: Q: What is it used for?
A: These LCD controller kits are used to turn a bare LCD Panel component into an active monitor, provided that your LCD panel is in good condition.
Q: What else do I need to mount a LCD panel into an active monitor?
A: Things needed as follows: LCD controller kit, power adapter, VGA cable/ DVI cable.You could get these items in our store.
Q: Can I use a controller kit for several different LCDs?
A: These boards are matched against one very specific LCD Panel and typically cannot be re-used for another panel – unless its specifications are exactly the same.If you are interested, a programmer could help your project on different LCDs, to change the firmware by yourself. And for this project, need different LVDS cables for different LCDs. You also could find LVDS cables in our store. For details, please check:http://stores.ebay.com/njytouch
Q: How do I process an order?
Step 2: bid items.
Step 3: advise shipping service. If you need express shipping rather than CHINA POST shipping, please do advise and wait for our invoice for payment. We shall check rates for you.
Step 4: pay according to invoice.
Q: What’s LCD panel model no.?
A: The panel model no. can usually be found written on a sticker on the back of the LCD panel, and “SAMSUNG LTN150XF-L01” is an example.
（disassemble it from its plastic shell and find the sticker）
Q: Which controller kit shall I turn to?For panels with resolution not more than 1440*900, you may choose our controller boards freely that best meet your needs:
A. With VGA port only: R.RM3251/R.RM3451
B. With VGA and DVI port: R.RM5251/R.RM5451
C. With VGA and DVI port and also support audio input: R.RM5251(audio)/R.RM5451(audio)
D. With VGA port and support TV function: R.RT6251
For panels with resolution more than 1440*900 but not more than 1920*1200, you'd better refer to:R.RM3451/R.RM5451/R.RM5451(audio)
Q: Is any solder thing needed if I buy this kit?
A: No. It is Plug_and_play.
Notes:
1 If you pay much attention to resolution setting, please reconsider before bidding!
2 If you are not specialized in electronics or have any doubts in using, please contact us for user manual. We are irresponsible for wrong operation.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Compatible R.RM5251 (Audio) LCD Controller Board LVDS to DVI VGA for assambling laptop desktop PC monitor
LCD screen panel controller Board kit LVDS to VGA DVI converter
Condition: New
Function: Turning a bare LCD panel into a working screen. Especially good for reusing old laptop LCD screen (in good condition, but mother board died)
This item is very popular in worldwide now! Many customers emailed us for expressing their appreciations to our products which make their old laptops survival!
The following videos(filmed by our dear customer) will show you how it performances:
http://www.youtube.com/watch?v=SKifzJ7sEWs&feature=relmfu
http://www.youtube.com/watch?v=CGDD1MBF9O0
Successful example from our customer "tjkevboss"(connecting with Playstation 3):
Successful example from our Singapore customer:
Successful example from our customer "billfleming11":
More information about this controller board:
Specification:
|
Chipset |
RTD2525L |
|
Panel interface |
Double LVDS |
|
Input signal |
PC-RGB/ DVI |
|
Audio output |
2*2W |
|
Max Panel Resolutions |
1440*900 |
|
OSD language |
Chinese/English/French/Germany/Korean…(customizable) |
|
Power supply |
+12V/ standby<1W |
|
Voltage to panel |
+3.3V/5V/12V/18V |
|
Current to panel |
3A |
|
Other |
Support internal 5V or 12V power board,
Support the panel with two different voltage,
Support remote control |
This LCD Controller board has a VGA & DVI &Audio port. It supports LCD displays with a LVDS interface. The max resolution that it supports is 1440x900.
If you bid, please tell us the Display Model no. of your LCD, then we will check if it is compatible and choose suitable accessories for you.
The panel model no. can usually be found written on a sticker on the back of the LCD panel, and “SAMSUNG LTN150XF-L01” is an example.（disassemble it from its plastic shell and find the sticker）
More details of your LCD like the datasheet are welcome to send to us for further confirmation.
Package includes: A R.RM5251(audio) controller, a suitable LVDS cable, a suitable inverter, a 5-key keypad and a 1-to-1 audio cable.
Suitable LVDS cable will be selected here:
http://stores.ebay.com/njytouch/LVDS-cable-/_i.html?_fsub=3585675018&_sid=390892488&_trksid=p4634.c0.m322
Suitable inverter will be selected here:
http://stores.ebay.com/njytouch/Inverter-/_i.html?_fsub=3585602018&_sid=390892488&_trksid=p4634.c0.m322
Here is the 5-key keypad:
http://www.ebay.com/itm/NEW-5-key-keypad-LCD-display-controller-boards-DIY-/270996689189?pt=LH_DefaultDomain_0&hash=item3f18a95125

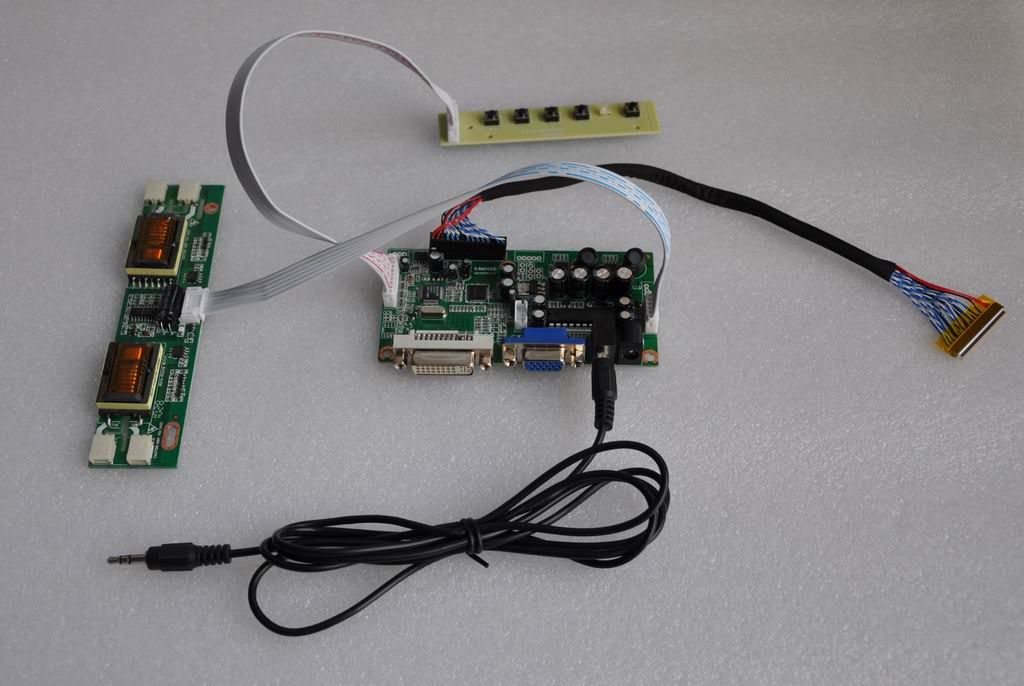

Below picture is an example, your package will be similar like this:
(Note: We will choose the inverter and LVDS cable according to your model and size of your LCD. )
So your LCD model no. is essential for obtaining right accessories. Please advise when ordering!
Suitable power adapter (12V, 4A) is essential; if required, you could get one here:
http://stores.ebay.com/njytouch/Power-adapter-/_i.html?_fsub=3585599018&_sid=390892488&_trksid=p4634.c0.m322
Kindly note: If the resolution of your LCD panel is higher than 1440x900 and lower than 1920x1200, please turn to our R.RM5451 controller board for more information; If you prefer a controller board with just a VGA input, please refer to our R.RM3251 and R.RM3451 LCD controller board; If you'd like to turn your LCD panel into TV , please turn to our R.RT6251 LCD controller board. Just enjoy selecting suitable products from our eBay store:
http://stores.ebay.com/njytouch/LCD-controller-board-kits-DIY-/_i.html?_fsub=2982811018&_sid=390892488&_trksid=p4634.c0.m322
VGA or DVI cable if required, could be get here:
http://stores.ebay.com/njytouch/VGA-DVI-HDMI-DVI-VGA-cable-/_i.html?_fsub=3585678018&_sid=390892488&_trksid=p4634.c0.m322
Note:
1. Please make sure that your LCD is ok before you bid our item, or we will be not responsible for the
incompatibility; all our items are carefully tested before shipping.
2. No metal contact is allowed when powering on the controller board, otherwise short circuit may occur, which
would further cause unavailability of the controller board.
3. For large quantity, we can offer discounts; please contact us for details.
4. For orders with a quantity more than 50 pcs, we can send you our programmer 1pc for free, which can be used for programming all of our R.RM controller boards.
For below panels, we can match a full set controller board kit with suitable inverter and LVDS cable for you.
Most of them have got OK positive feedback from our customers.Welcome to have a try!
For others not in the list, please contact for more details.
Note: If your model no. is in list, please leave us a note about it when ordering. Thanks!
| PANEL NAME |
BRAND NAME |
PANEL NAME |
BRAND NAME |
PANEL NAME |
BRAND NAME |
PANEL NAME |
BRAND NAME |
| B154SW01 V.8 |
AU Optronics |
B170PW01 |
AU Optronics |
LP141X13(C2) |
LG&PHILIPS |
LTM150XH-L06 |
Samsung |
| B170UW01 V.0 |
AU Optronics |
B170PW03 |
AU Optronics |
LP141XA (A1) |
LG&PHILIPS |
LTN150x13-L03 |
Samsung |
| B170UW02 V0 |
AU Optronics |
B170PW03 V.0 |
AU Optronics |
LM150x08 (TL) (A1) |
LG&PHILIPS |
LTN150XB-L01 |
Samsung |
| M201EW02 V9 |
AU Optronics |
B170PW03 V.4 |
AU Optronics |
LP150x05 |
LG&PHILIPS |
LTN150XB-L03 |
Samsung |
| N154Z1-L02 |
Chi Mei |
B170PW04 V.0 |
AU Optronics |
LP150X06(A3) |
LG&PHILIPS |
LTN150XC-L01 |
Samsung |
| N154Z1-L02 Rev.C1 |
Chi Mei |
B170PW01 V.1 |
AU Optronics |
LP150X08 (A3) |
LG&PHILIPS |
LTN150XG-L06 |
Samsung |
| CLAA150PB0B03A |
CHUNGHWA |
B170PW02 |
AU Optronics |
LP150X08 (A5)(N1) |
LG&PHILIPS |
LTN154AT01 |
Samsung |
| HSD150PK14-A00 |
HannStar |
B170PW06 V.2 |
AU Optronics |
LP150x08(A2) |
LG&PHILIPS |
LTN154AT01-001 |
Samsung |
| HSD170ME13 |
HannStar |
B170PW06 V.3 |
AU Optronics |
LP150X08(A3) |
LG&PHILIPS |
LTN154AT07 |
Samsung |
| HSD190ME12 |
HannStar |
B170PW3 |
AU Optronics |
LP150X08(A3)(M1) |
LG&PHILIPS |
LTN154X1-L01 |
Samsung |
| TX41D56VC1CAA |
Hitachi |
B170PW01 V.0 |
AU Optronics |
LP150X08(A5) |
LG&PHILIPS |
LTN154X1-L02 |
Samsung |
| ITSX95E |
IBM |
B170PW03 V.1 |
AU Optronics |
LP150X08(A6) |
LG&PHILIPS |
LTN154X1-L03 |
Samsung |
| ITUX97H |
IBM |
B170PW03 V.3 |
AU Optronics |
LP150X08-A2 |
LG&PHILIPS |
LTN154X1-L04 |
Samsung |
| IAUX14P |
IDTech |
G084SN05 V3 |
AU Optronics |
LP150X08-TLA1 |
LG&PHILIPS |
LTN154X2-L02 |
Samsung |
| N150U3-L01 |
IDTech |
G104SN03 |
AU Optronics |
LP150X09 |
LG&PHILIPS |
LTN154X3-L01 |
Samsung |
| MT170EN01 |
Innolux |
G104SN03 V.0 |
AU Optronics |
LP150X09 (A5) (K1) |
LG&PHILIPS |
LTN154X3-L03 |
Samsung |
| LP150E02 (A2) |
LG&PHILIPS |
G121SN01 V1 |
AU Optronics |
lp150x09(b2) |
LG&PHILIPS |
LTN154x3-L05 |
Samsung |
| LP150E05 |
LG&PHILIPS |
G150XG03 V.1 |
AU Optronics |
LP150X2 (A2) |
LG&PHILIPS |
LTN154x3-L06 |
Samsung |
| LP150E05(A2)(K1) |
LG&PHILIPS |
L141X1-1A |
AU Optronics |
LP154W01 |
LG&PHILIPS |
LTN154X4 |
Samsung |
| LP150E06(A3)(K2) |
LG&PHILIPS |
M170EG01 |
AU Optronics |
LP154W01 (A1) |
LG&PHILIPS |
LTN154XA-L01 |
Samsung |
| LP150U03(A2)(P1) |
LG&PHILIPS |
M170EG01 VA |
AU Optronics |
LP154W01 (A3) |
LG&PHILIPS |
LTN154XB-L01 |
Samsung |
| LP150U1-A2 |
LG&PHILIPS |
M170EN04 |
AU Optronics |
LP154W01 (A3)(K1) |
LG&PHILIPS |
LTN160AT02 |
Samsung |
| LP154WU1 (A1) |
LG&PHILIPS |
M190Ea02 V.0 |
AU Optronics |
LP154W01 (TL) (AJ) |
LG&PHILIPS |
LTM170E6-L04 |
Samsung |
| LP154WU1 (TL) (C1) |
LG&PHILIPS |
M190EG01 |
AU Optronics |
LP154W01 (TL) (E1) |
LG&PHILIPS |
LTM170EH-L01 |
Samsung |
| LP154WU1(TL)(A1) |
LG&PHILIPS |
M190EG02 |
AU Optronics |
LP154W01 (TL)(AE) |
LG&PHILIPS |
LTM170EU-L01 |
Samsung |
| LP154WU1 (TL)(B1) |
LG&PHILIPS |
M190EN03 |
AU Optronics |
LP154W01 (TL)(B6) |
LG&PHILIPS |
LTN170WA-L01 |
Samsung |
| LP154WU1(TL)(A2) |
LG&PHILIPS |
M190EN04 |
AU Optronics |
LP154W01 (TL)(D1) |
LG&PHILIPS |
LTN170WX-L01 |
Samsung |
| LP154WU1-A1 |
LG&PHILIPS |
M190EN04 V5 |
AU Optronics |
LP154W01(A5) |
LG&PHILIPS |
LTN170WX-L03 |
Samsung |
| LP154WU1-TL A2 |
LG&PHILIPS |
M190PW01 |
AU Optronics |
LP154W01(A5)(K2) |
LG&PHILIPS |
LTN170WX-L05 |
Samsung |
| LP154WU2(TL)(A2) |
LG&PHILIPS |
M190PW01 V0 |
AU Optronics |
LP154W01(TL)(A2) |
LG&PHILIPS |
LTN170X2-L02 |
Samsung |
| LP171W02 (A4) |
LG&PHILIPS |
HT12x21 |
BOE |
LP154W01(TL)(D4) |
LG&PHILIPS |
LTN170X2-L03 |
Samsung |
| LP171WU1 |
LG&PHILIPS |
HT13X13-201 |
BOE |
LP154WP1 |
LG&PHILIPS |
LTM190EP01 |
Samsung |
| LP171WU1 (A4)(K5) |
LG&PHILIPS |
HT13x21-220 |
BOE |
LP154WX4 |
LG&PHILIPS |
LTM190EX-L01 |
Samsung |
| LP171WU1 (TL)(A5) |
LG&PHILIPS |
HT14x13-L02 |
BOE |
LP154WX4 (TL)(B2) |
LG&PHILIPS |
LTM190M2-L31 |
Samsung |
| LP171WU1(A4)(K2) |
LG&PHILIPS |
HT14x19-l00 |
BOE |
LP154WX4 TLC3 |
LG&PHILIPS |
M190A1-P02 |
Samsung |
| LP171WU1(TL)(A2) |
LG&PHILIPS |
HT140WX1-101 |
BOE |
LP154WX4(TL)(C1) |
LG&PHILIPS |
TD170WGCA1 |
Samsung |
| LP171WU1（TL）（B2) |
LG&PHILIPS |
G133I1-L02 |
Chi Mei |
LP154WX4-TLC5 |
LG&PHILIPS |
TD170WGCB3 |
Samsung |
| LP171WU1-A4-K4 |
LG&PHILIPS |
N141I3-L02 |
Chi Mei |
LP154WX4-TLCB |
LG&PHILIPS |
TD141TGCB1 |
Samsung |
| LQ150U1LA03 |
Sharp |
N141L1-L02 |
Chi Mei |
LP156WH1 |
LG&PHILIPS |
150XB-L01-00R5 |
Samsung |
| LQ150U1LH22 |
Sharp |
N141l1-L03 Rev. C1 |
Chi Mei |
LP156WH1(TL)(A1) |
LG&PHILIPS |
LQ12X54 |
Sharp |
| LQ150U1LW03 |
Sharp |
N141X101 |
Chi Mei |
LM170E01 |
LG&PHILIPS |
LQ133X1LH27 Rev.8 |
Sharp |
| LQ154M1LW02 |
Sharp |
N150x2-L01 |
Chi Mei |
LM170E01 (A) |
LG&PHILIPS |
LQ13X02C |
Sharp |
| LQ154M1LW12 |
Sharp |
N150X3 -L05 |
Chi Mei |
LM170E03-TLG1 |
LG&PHILIPS |
LQ150X1LH52 |
Sharp |
| LQ154M1LWO2 |
Sharp |
N15412-L02 Rev.C1 |
Chi Mei |
LP171W01(A4) |
LG&PHILIPS |
LQ150X1LH62 |
Sharp |
| LQ170M1LA04 |
Sharp |
N154C1-L02 |
Chi Mei |
LP171W01(A4)(K1) |
LG&PHILIPS |
LQ150X1LH82 |
Sharp |
| LQ170M1LA2E |
Sharp |
N154I1-L07 Rev.C2 |
Chi Mei |
LP171WP4 |
LG&PHILIPS |
LQ150X1LS91 |
Sharp |
| LQ170M1LA3C |
Sharp |
N154i1-L09 C1 |
Chi Mei |
LP171WP4 (TL) (B1) |
LG&PHILIPS |
M150XN07 |
Sharp |
| LQ170M1LA4B |
Sharp |
N154I1-LOC |
Chi Mei |
LP171WP4 (TL) (B3) |
LG&PHILIPS |
LTD104EA5W |
Toshiba |
| LQ170M1LA4G |
Sharp |
N154I2-L02 |
Chi Mei |
LP171WP4 (TL)(03) |
LG&PHILIPS |
LTD121EX1S |
Toshiba |
| LTN141P1-L01 |
Samsung |
N154I2-L02 rev. c1 |
Chi Mei |
LP171WP4 (TL)(B4) |
LG&PHILIPS |
LTD121EXVV |
Toshiba |
| LTN141P2-L01 |
Samsung |
N170C2-L02 |
Chi Mei |
LP171WP4-TL02 |
LG&PHILIPS |
LTM09C362F |
Toshiba |
| LTN141P4-L01 |
Samsung |
N170C2-L02 Rev.C2 |
Chi Mei |
LP171WP4(TL)(B1) |
LG&PHILIPS |
LTM12C268E |
Toshiba |
| LTN150P2-L01 |
Samsung |
M170E5 L09 Rev C1 |
Chi Mei |
LP171WP4(TL)(B5) |
LG&PHILIPS |
LTM14C421 |
Toshiba |
| LTN150P2-L03 |
Samsung |
M190A1 |
Chi Mei |
LP171WP4(TL)(N2) |
LG&PHILIPS |
TD141TGCB2 |
Toppoly |
| LTN150P4-L02 |
Samsung |
M190A1-L01 |
Chi Mei |
LP171WP4(TL)(R2) |
LG&PHILIPS |
TD141TGCD1 |
Toppoly |
| LTN150PG-L02 |
Samsung |
M190E3-L0A |
Chi Mei |
LP171WP6 |
LG&PHILIPS |
TM121SV-02103A |
Torisan |
| LTN150PG-L03 |
Samsung |
CLAA141XC01 |
CHUNGHWA |
LP171WU1(TL)(03) |
LG&PHILIPS |
TM121XG-02L02 |
Torisan |
| LTN154P1-L01 |
Samsung |
CLAA150XH01 |
CHUNGHWA |
LP171WX2 (A4)(K5) |
LG&PHILIPS |
TM121XG-02L02D |
Torisan |
| LTN154P1-L02 |
Samsung |
CLAA150XP01 |
CHUNGHWA |
LP171WX2 (A4)(K1) |
LG&PHILIPS |
TS104SAALC01-00 V.2.0 |
TIANMA |
| LTN154P1-L03 |
Samsung |
CLAA154WA01 |
CHUNGHWA |
LP171WX2 (A4)(K9) |
LG&PHILIPS |
QD15TL07 REV:02 |
Quanta |
| LTN154P1-L04 |
Samsung |
CLAA154WA01A |
CHUNGHWA |
LP171WX2 (TL)(A1) |
LG&PHILIPS |
QD141X1LH03 |
Quanta |
| LTN154U1-L01 |
Samsung |
CLAA154WA02 |
CHUNGHWA |
LP171WX2(A4) |
LG&PHILIPS |
QD141X1LH03 rev a |
Quanta |
| LTN154U1-L02 |
Samsung |
CLAA154WA05 |
CHUNGHWA |
LP171WX2(TL)(A2) |
LG&PHILIPS |
QD141X1LH06 |
Quanta |
| LTN170U1-L01 |
Samsung |
CLAA154WA05A |
CHUNGHWA |
LP171WX2(TL)(A3) |
LG&PHILIPS |
QD141X1LH12 |
Quanta |
| LTN170WP-L02 |
Samsung |
CLAA154WA05A V1 |
CHUNGHWA |
LM190E03(B4)(N2) |
LG&PHILIPS |
QD14TL01 Rev.03 |
Quanta |
| LTN170WU-L02 |
Samsung |
CLAA154WB05A |
CHUNGHWA |
LM190E03(B4)(N9) |
LG&PHILIPS |
QD14WL01 |
Quanta |
| LTN184HT03-001 |
Samsung |
CLAA154WB05AN |
CHUNGHWA |
LM190WX11 |
LG&PHILIPS |
QD14XL07 |
Quanta |
| LTN190w1 |
Samsung |
CLAA170EA07Q |
CHUNGHWA |
SVA170SX01 |
NEC |
QD15TL01 |
Quanta |
| LTN190w1-L02 |
Samsung |
HSD121PS11 |
HannStar |
NL10276BC20-04 |
NEC |
QD15TL02 |
Quanta |
| LTD121KM2M |
Toshiba |
HSD141PX11-A (Rev:1) |
HannStar |
NL10276BC30-24D |
NEC |
QD15TL02 Rev.02 |
Quanta |
| TM150SP-02L02 |
TORISAN |
HSD150PX14 |
HannStar |
LTN106W1-L01 |
Samsung |
QD15TL02 Rev.04 |
Quanta |
| B121EW03 V3 |
AU Optronics |
HSD150PX14-A |
HannStar |
LTN121AT02 |
Samsung |
QD15TL02 Rev.06 |
Quanta |
| B121EW03 V8 |
AU Optronics |
HSD150Px14-A(REV.O) |
HannStar |
LTN121X1-L01 |
Samsung |
QD15TL02 Rev:03 |
Quanta |
| B133EW01 V4 |
AU Optronics |
HSD150PX14-A02 |
HannStar |
LTN121x1-L02 |
Samsung |
QD15TL03 |
Quanta |
| B140EW01 |
AU Optronics |
HSD170MGW1-A00 |
HannStar |
LTN121XF-L01 |
Samsung |
QD15TL03 Rev.04 |
Quanta |
| B141EW02 |
AU Optronics |
HSD170MGW1-B00 |
HannStar |
LTN121XJL03 |
Samsung |
QD15TL07 |
Quanta |
| B141EW04 |
AU Optronics |
TX31D65VC1CAA |
Hitachi |
LT121SS-121 |
Samsung |
QD15TL07 Rev2 |
Quanta |
| B141XG03 |
AU Optronics |
TX36D79VC1CAB |
Hitachi |
LTD133EXZX |
Samsung |
QD15XL06 |
Quanta |
| B141XG08 |
AU Optronics |
TX36D81VC1CAC |
Hitachi |
LTN140W1-L01 |
Samsung |
QD15TL02 rev 02 |
Quanta |
| B141XG03 V.2 |
AU Optronics |
TX39D30VC1GAA |
Hitachi |
LTN141W1-L04 |
Samsung |
QD17EL07 |
Quanta |
| B141XN04 V2 |
AU Optronics |
TX39D80 |
Hitachi |
LTN141W1-L05 |
Samsung |
QD17TL02 Rev.06 |
Quanta |
| B150XG01 |
AU Optronics |
TX39D80VC1GAA |
Hitachi |
LTN141WD-L01 |
Samsung |
QDI N15W REV:4 |
Quanta |
| B150XG01 V.2 |
AU Optronics |
TX39D87VC1FAA |
Hitachi |
LTN141WD-L07 |
Samsung |
QD15TL02 rev02 |
Quanta |
| B150XG01 V.7 |
AU Optronics |
IAXG15S |
IBM |
LTN141WD-L07 (B) |
Samsung |
UB141X01-5 |
Unipac |
| B150XG02 |
AU Optronics |
IAXG02C |
IDTech |
LTN141X8-L00 |
Samsung |
B141XN03 V.0 |
Unipac |
| B150XG02 V.1 |
AU Optronics |
LC121S1 |
LG&PHILIPS |
LTN141X8-L02 |
Samsung |
LM151X05 |
LG&PHILIPS |
| B154EW01 V.9 |
AU Optronics |
LP121X04(C2) |
LG&PHILIPS |
LTN141XA-L01 |
Samsung |
LM151X05(A3)(C1) |
LG&PHILIPS |
| B154EW01 |
AU Optronics |
LP121X4 (C2) |
LG&PHILIPS |
LTN141XB-L01 |
Samsung |
AA104VC08 |
Mitsubishi |
| B154EW02 |
AU Optronics |
LP133WX1(TL)(A1) |
LG&PHILIPS |
LTN141XB-L02 |
Samsung |
NL6448bc20-06 |
NEC |
| B154EW04 |
AU Optronics |
LP133WX1(TL)(N2) |
LG&PHILIPS |
LTN141XC-L01 |
Samsung |
NL6448bc26-01 |
NEC |
| B154EW04 V.2 |
AU Optronics |
LP133WX1-TLB1 |
LG&PHILIPS |
LTN141XF-L01 |
Samsung |
NL6448BC33-59 |
NEC |
| B154EW08 |
AU Optronics |
LP133x7(C2CC) |
LG&PHILIPS |
LTN141XF-L03 |
Samsung |
NL8060AC26-11 |
NEC |
| B154EW08 V.1 |
AU Optronics |
LP133X8 |
LG&PHILIPS |
LTN141XF-L05 |
Samsung |
HLD1026-011150 |
Panasonic |
| B154PW01 |
AU Optronics |
LP133X8 A2AC |
LG&PHILIPS |
LT141X2-124 |
Samsung |
LQ10D367 |
Sharp |
| B154EW04 V.8 |
AU Optronics |
LP141WP1 |
LG&PHILIPS |
LT141X4-156 |
Samsung |
LQ10D368 |
Sharp |
| B154EW04 V.B (REV:03) |
AU Optronics |
LP141WP1(TL)(A1) |
LG&PHILIPS |
LT141X7 |
Samsung |
LT121S1-101 |
Samsung |
| B154EW02 V.1 |
AU Optronics |
LP141WX1 |
LG&PHILIPS |
LT141X7-122 |
Samsung |
LT121S1-153 |
Samsung |
| B154EW02 V.7 |
AU Optronics |
LP141WX1(TL)(A1) |
LG&PHILIPS |
LT150X3-126 |
Samsung |
LT121S1-L05 |
Samsung |
| B154PW01 V1 |
AU Optronics |
LP141WX1(TL)(A2) |
LG&PHILIPS |
LTM150HX-L01 |
Samsung |
TM121SV-02L01 |
Torisan |
| B154PW01_V0 |
AU Optronics |
LP141WX3 TL B1 |
LG&PHILIPS |
CLAA102NA0ACW |
LED |
HSD100IFW1-A00 |
LED |
| B089AW01 |
LED |
|
|
|
|
|
|
Note: We promise to input the corresponding program into the controller board for you and try our best to select the right LVDS cable and inverter for you. But because we don't have an exact LCD as yours at hand, sometimes we can just test the controller using our own LCD to see if it works. For yours, you have to test it yourself to see if it works well in your LCD. As we all know, there are too many LCDs with many varieties in the market; though our controller boards are compatible, sometimes we can't promise the exact compatibility. Please think about it before bidding! Nevertheless, we've got many positive feedbacks from our customers who bought the LCD controller boards from us. Just take a try, you'll get surprise!
How the controller board is connected in LCD? Have a look at this:
Step 1: take away the old LVDS cable and old inverter from the LCD panel.
Step 2: connect our LVDS cable and inverter connector to the LVDS interface and backlight connector on your LCD panel.
Step 3: connect VGA cable/DVI cable to controller board and PC.
Step 4: input power of 12V,4A.
|
Shipment
u Items can be shipped to worldwide, unless otherwise specified. Generally speaking, all orders will be shipping by airmail via China Post to worldwide. All orders are processed and shipped within 2-3 business days after receipt of cleared Payment. Please pay within 7 days after you bid on our item. In case your payment is received during holidays, your orders will be dispatched after holidays.
u Normally your order will arrive in about 20-30 business days. For New year' season, these days, it takes more time in transit, due to snowy weather, tight flights, postponed flights and holidays,etc. Sometimes it takes more than one month on the way. Tracking no. is informed.
SO if you are in an urgent needs, express way is also available on request, the cost is higher and is subject to the postcodes(zip codes) for delivery.
u Non-receive order——If you didn’t receive your order after 45 business days, please contact us with your order number and eBay ID presented, we will try our best to help you solve the problem.
Note: 1. We only ship to the confirmed address provided by PayPal. So before you pay, please make sure that your address in PayPal matches the address you would like us to ship to.
2. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
3. We are unable to take any responsibility for any delivery delay, because transit time is highly depended on Postal Service, especially during the weekends or holidays. But we will try our best to help you solve the problem if DOA happens.
4. Your contact phone number is required for shipment. Please leave it on eBay or tell us through PayPal when paying. (This will minimize customs and shipping delay, because the shipping carrier can contact you quickly.)
5. Express service is also available——If your orders are required in urgently, we can offer express service, such as DHL, UPS, FedEx; But the shipping fee would be higher. Please contact us further if this express service is required.
| Here are delivery time to countries all over the world via China post and DHL(for non-remote area) |
|
|
|
|
|
|
|
|
| |
USA, Canada |
Western Europe |
Australia,New Zealand |
Asia |
Others |
China post
(free) |
20-30 business days |
25-35 business days |
25-35 business days |
20-30 business days |
35-45 business days |
upgrade
DHL shipping |
4-7 business days
(add $16.99) |
4-7 business days
(add $16.99) |
4-7 business days
(add $16.99) |
4-7 business days
(add $13.99) |
4-7 business days
(contact for detail) |
|
Notes: |
|
|
|
|
|
| 1 Western European countries：Germany, Bulgium, United Kingdom, France, Italy, Luxembourg, Netherlands, Austria, Denmark, Finland, Greece,, Ireland, Norway, Portugal, Spain, Sweden, Switzerland, Malta； |
|
| 2 Asian countries：Singapore, the Philippines, Brunei, Malaysia, Thailand， |
|
Return Policy
We guarantee for exchange—If you find the item is not in accordance with the descriptions on eBay, then you can exchange it for a new one or get refund within 14days after you receive our item.
Please note: Shipping and handling charges cannot be refunded. Exchange or refund will be made after returning the product. The return item and its accessories must be kept original and undamaged. The return shipping and handling charges for exchanging are for the buyers’ account.
Please be certain you can use the item that you are bidding on because incompatibility can’t be a valid reason for return!
Feedback
Feedback will be left as soon as possible after we receive your feedback. We would try our best to help you solve any problem. Positive feedbacks are recommended. If you plan to give us a neutral or negative feedback, please write to us immediately so that we will do our best to help you solve the problem.
Contact us
As a rule, we aim at satisfying all our customers. So if you have any question, please feel free to let us know. We will do our best to help you solve the problems as quickly as possible.
If you have any questions please contact us before bidding! Thanks!
Business Hours: 19:00p.m.——12:00a.m. ET (Except Saturday)
Our principles of doing business are: Customer-centric; Good Quality; Fast-response; Instant-action; Professional-technique; and Smiling service
|
|
cE9s4Pu,YjBQVuhSSn9Q~~60_35.JPG)
)
6uy23BO0z5Noz7g~~_11.JPG)
