DC 1000mA Current & Max. 5.0m(Lift Height)
12.0W & Max. 500L/H(Flow)
A wide range of water pumps with different specifications are available.
The following list of all DC40 Series is for your reference:
|Model||Voltage(V)||Current(mA)||Max Head(m)||Max Flow(L/H) at zero head||Power(W)|
Note: Maximum liquid temperature: 60°C, 172F
|Material||Case is PA66, Sleeve is Ceramic Shaft|
|Installation Environment||Submersible or below liquid surface|
|Diameter of Inlet||13.8mm|
|Diameter of Outlet||10.0mm|
|Max Head(lift height)||5.0M|
|Max Water Pressure||5 Bar (It means the pump can withstand max 5bar water pressure)|
|Max Operating Temp||60°C/172F|
|Working Life||More than 30,000 hours|

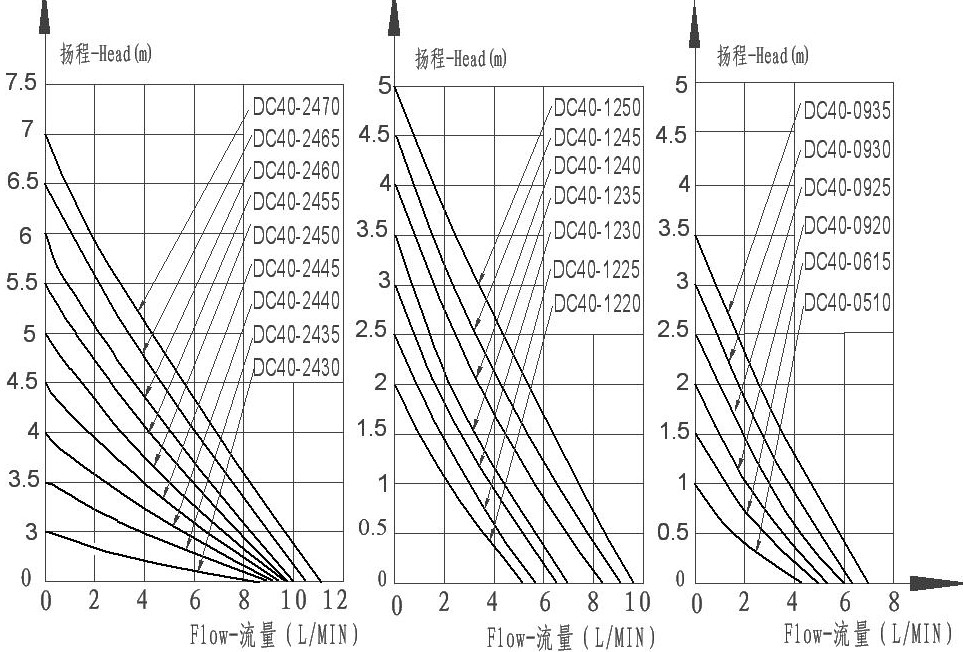

No, the pump can lift to the max height when there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump(refer to the above Head-Flow Curve graph). the Head means when you connect a little hose on the output of pump, the max height of the pump can pump, if you do not connect a little hose on it, it can not pump water to the height in AD.
No, if you want to connect a pump on solar panel, we recommend you use our 3 phase pump which has the External circuit board.
3.Can i dry run the pump(run but not pump water)?
1.The black box contains the circuit board, it is not a transformer, the input voltage should be less than DC12V. External circuit board is designed for sustaining water temperature up to 100°C.
2. This pump is centrifugal pump, it can't vent the air automatically, so it must be operated by submersible installation.(if outside installation, you should make sure it is below the liquid surface)
3. When blocking, long-running is not allowed.
4. Preventing any hard particles entering the pump.
The following picture is just for reference：
