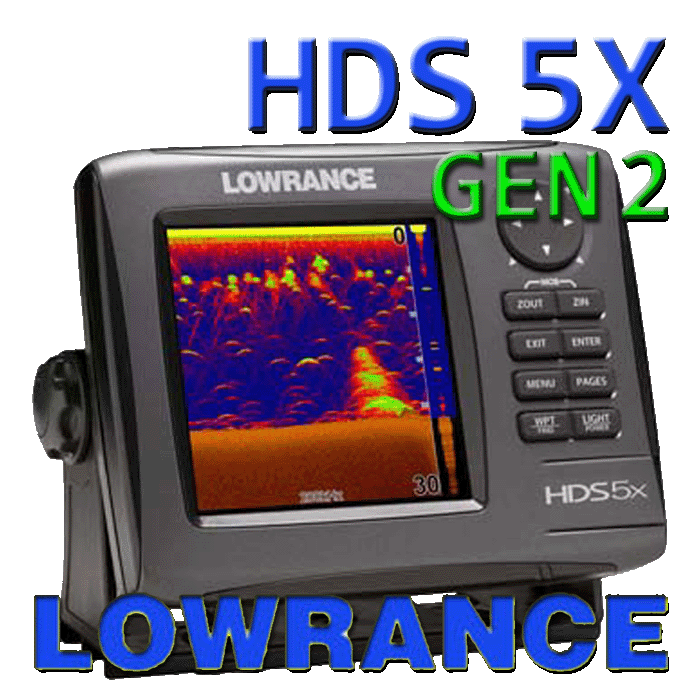

Lowrance HDS-5x Gen2
Australia Version, Australian Warranty
Comes with Transom mounted transducer
Unique Features Working Together
Enjoy HDS® high-definition in a popular space-saving size .
The HDS-5X GEN2 has an exclusive high-resolution 5 in./12.7 cm display, at an attractive, entry-level HDS Gen2 price. While the splitscreen-zoom view with Broadband Sounder is a popular choice, options also include a three-window display.
HDS Performance Module Add-on Options
- StructureScan sonar imaging module
- Broadband Radar
- SonicHub marine-audio server
- HD Digital radomes
|Display Size||5 in \ 127 mm |
|Display Resolution ||480 x 480 (H x W) |
|Display Type ||16-bit color SolarMAX™ PLUS TFT |
|Backlighting ||Screen/Keypad |
|Backlighting Type ||Flourescent (CCFL) backlit screen, LED keypad backlight |
|Sonar And GPS Overlay Data ||Yes |
|Split Screen Presentation ||Yes |
|Multilanguage Display ||Yes |
|Languages Supported ||32 |
SONAR / SOUNDER
|Sonar Frequency ||83/200 kHz Transom mounted transdcuer |
|Transducer Type Power||Transom mount|
|Sonar Output Power ||Max 250W Broadband, analog equivalent 30,000W and 32W Broadband, analog equivalent 3,750 W |
|Sonar Depth ||Max 5000 ft \ 1524 m |
|Standard Fishfinder Features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more ||Yes |
|FasTrack™ ||Yes |
|Ping Speed HyperScroll™ ||Yes |
|Depth Alarm ||Yes |
|Shallow Alarm ||Yes |
|Temperature Display ||yes |
|Antenna Type ||Optional Lowrance radar choices available |
NETWORKING / CONNECTORS :
|NMEA 0183 Input||Yes|
|NMEA 0183 Interface ||Type 422 [(1) Tx (1) Rx] |
|NMEA 2000 Certified||Yes|
|NMEA Output||0183/2000 |
|Connectors||NMEA 2000®, NMEA 0183 and Ethernet |
TECHNICAL / ENVIRONMENTAL :
|Built-in Backup Memory||Yes. |
|Casing||Sealed and waterproof IPX7 |
|Width||7.3 in \ 185 mm |
|Height||5.8 in \ 147 mm |
|Depth||4 in \ 102 mm |
|Operating Temperature||(5F - 130F) (-15C - 55C) |
|Power Supply||10 - 17 vDC |
|Power Consumption||0.7A at 13 vDC with backlight on, 0.4A with backlight off |
|NMEA 2000 Load Equivalency Number||1 network load (50mA) |
|Memory Card Capable||One SD/MMC memory card slot |
|Operating Temperature Stored||(-40F - 185F) (-40C - 85C) |
|Other Features||Performance Modules: StructureScan with optional LSS-1 module (8 color palette options), Broadband Sounder technology (with 14 color palette options), ethernet networking, optional SIRIUS Satellite Weather/Radio, Broadband Radar, Digital Radar, SonicHub, AIS, DSC VHF |
new 2-year limited warranty
What's in the Box :
- Lowrance HDS-5X Gen2 Fishfinder
- 83/200 Transom mounted Transducer
- Power cable
- Mounting bracket
- Manual and Disc
- Screen cloth
