Details about  New 12V CPU Cooling Car Brushless Motor Water Pump DC40A-1240 High-Quality

New 12V CPU Cooling Car Brushless Motor Water Pump DC40A-1240 High-Quality See original listing
New-12V-CPU-Cooling-Car-Brushless-Motor-Water-Pump-DC40A-1240-High-Quality
Item Ended
Item condition:
Brand New
Ended:
27 Feb, 2014 06:09:25 AEDST
Price:
AU $27.29
[
History:
]
Postage:
FREE Standard delivery from outside AU | See details
Item location:
HK, Hong Kong

More from the same seller Feedback on our suggestions

Description

eBay item number:
261384476750
Seller assumes all responsibility for this listing.
Last updated on  24 Feb, 2014 13:08:47 AEDST  View all revisions

Item specifics

Condition:
Brand New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition


World Shipping
7 Days Money Back

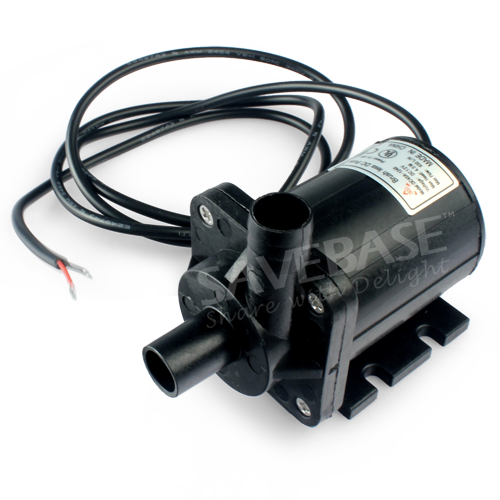

New 12V CPU Cooling Car Brushless Motor Water Pump DC40A-1240 High-Quality

12V DC Brushless Magnetic Drive Water Pump DC40A-1240

DC 950mA Current & Max. 4m(Lift Height)

11.4W & Max. 630L/H(Flow)

 Key Features:
  • Magnetic Drive. The stator and circuit board are sealed by epoxy resin, which are completely isolated with rotor

  • Super long working life(more than 30000 hours)

  • Adopt high performance ceramic shaft

  • The axis is enclosed with static sealing, not dynamic, which can avoid leaking problems

  • Amphibious design

  • High efficiency with low consumption & low noise(less than35db)



Descriptions:

This product can be used in many fields, such as computer cooling system, Garden fountain, Aquarium, car cooling system, humidifier, air conditioner, and many other cooling and circulation systems.






DC40A Series:

We have a wide range of water pumps with different specifications, please find the following list of all DC40A Series for your reference:

Model Voltage(V) Current(mA) Max Head(m) Max Flow(L/H) at zero head Power(W)
DC40A-0510 5 650 1.5 320 3.25
DC40A-0615 6 650 1.5 320 4
DC40A-0920 9 550 2 350 4.95
DC40A-0925 9 600 2.5 400 5.5
DC40A-0930 9 930 3 500 8.5
DC40A-1215 12 350 1.5 400 4.5
DC40A-1220 12 480 2 480 5.8
DC40A-1225 12 520 2.5 500 6.3
DC40A-1230 12 700 3 600 8.5
DC40A-1235 12 850 3.5 620 10.5
DC40A-1240 12 950 4 630 11.4
DC40A-1245 12 1000 4.5 640 12
DC40A-2425 24 350 2.5 550 8.4
DC40A-2430 24 480 3 580 11.5
DC40A-2435 24 550 3.5 600 13.2
DC40A-2440 24 680 4 650 16
DC40A-2445 24 850 4.5 700 20.5
DC40A-2450 24 950 5 720 22.8
DC40A-2455 24 1050 5.5 730 25.2

Note: Maximum liquid temperature: 60°C, 172F


 Head-Flow Curve Graph:




Model Number DC40A-1240
Material Case is PA66, Sleeve is Ceramic Shaft
Installation Environment Submersible or below liquid surface
Diameter of Inlet 13.8mm
Diameter of Outlet 13.3mm
Power Supply DC12V/950mA
Max Flow 630L/H
Max Head(lift height) 4M
Power 11.4W
Max Water Pressure 5 Bar
Waterproof Level IP68
Max Operating Temp 60°C/172F
Working Life More than 30,000 hours
Power Cord 1.0M(bared)
Weight approx. 270g

FAQ:

1.Does the Head mean i can use the pump to pump water(or other liquid) up to the height directly?

No, the pump can lift to the max height when there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump(refer to the above Head-Flow Curve graph). the Head means when you connect a little hose on the output of pump, the max height of the pump can pump, if you do not connect a little hose on it, it can not pump water to the height in AD.

2.Can i connect it on my solar panel?


No, if you want to connect a pump on solar panel, we recommend you use our 3 phase pump which has the External circuit board.

3.Can i dry run the pump(run but not pump water)?

No, Dry run the pump will damage the pump and shorten the working time of the pump.

Note:

1. This pump is centrifugal pump, it can't vent the air automatically, so it must be operated by submersible installation.(if outside installation, you should make sure it is below the liquid surface)

2. When blocking, long-running is not allowed.

3. Preventing any hard particles entering the pump.

The following picture is just for reference:



  • 1 x Water Pump
  • 1 x Adapter Plate.
