Details about  Revolutionary 0.2-5A TB6600HG Stepper Controller CNC Kit 4 Axis Nema24 4Nm Motor

See original listing
Revolutionary 0.2-5A TB6600HG Stepper Controller CNC Kit 4 Axis Nema24 4Nm Motor
Revolutionary-0-2-5A-TB6600HG-Stepper-Controller-CNC-Kit-4-Axis-Nema24-4Nm-Motor
Item Ended
Item condition:
Brand New
Ended:
18 Jun, 2014 13:01:40 AEST
Price:
AU $566.09
[
History:
]
Postage:
FREE Standard delivery from outside AU | See details
Item location:
HK, Hong Kong

Description

eBay item number:
390844970820
Seller assumes all responsibility for this listing.
Last updated on  10 Jun, 2014 17:09:28 AEST  View all revisions

Item specifics

Condition:
Brand New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition


Revolutionary 0.2-5A TB6600HG Stepper Controller CNC Kit 4 Axis Nema24 4Nm Motor

Descriptions

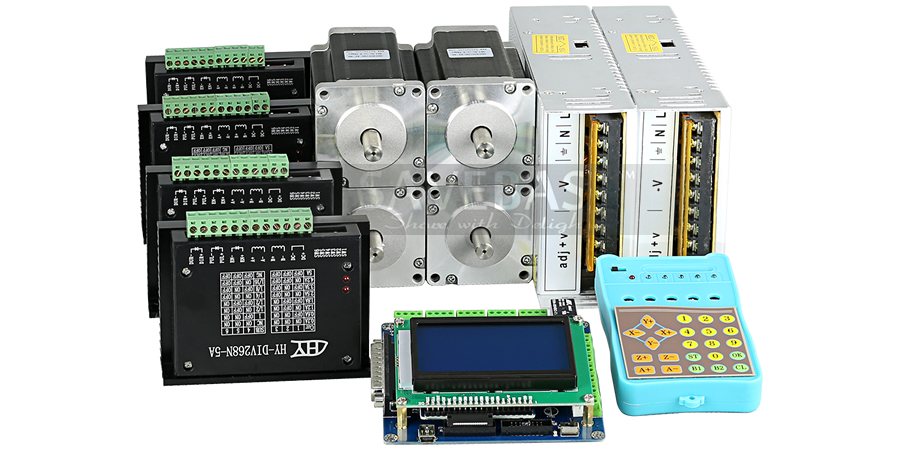

4 Pieces 5A 45VDC TB6600HG Microstep Drivers + 3G 5 Axis Breakout Board(Professional Ver)
4 Pieces Nema24 4Nm/567 Oz-in Stepper Motors + 2 Pieces 36V10A Switching Power Supply

Descriptions

The latest 3G breakout board has been upgraded to the intelligent, professional and industrial-level interface board set by re-designing the PCB board, embedding intelligent memory chip and upgrading the external manual control tools (control pad and display panel). The breakout board controls the microstep drivers more smoothly and with lower noise.

With the embedded intelligent memory chip, this professional version 3G 5 Axis breakout board can easily record MAXIMUM 4 Axis' (X, Y, Z, A Axis) G-code running on the CNC software (e.g. Mach3, EMC2, KCAM4, etc.), and then make the stepper motor working without the computer any more. Besides, it has manual programming function.

The TB1H is a high performance microstepping driver based on the latest original TOSHIBA high-efficiency TB6600HG IC. The TB6600HG adopts single-chip PWM bipolar sinusoidal chopper to ensure the low vibration and high efficiency. Moreover, the brand new design with BiCD0.13 (45V) process technology on the chipset also ensures maximum 5.0A output current and 45V output withstand voltage. Consequently, as long as the current range of the stepper motor is within 0.2-5 amps, all the 2 Phase or 4 Phase of Nema17, Nema23, Nema24 stepper motors will work perfectly with this new-type TB6600HG Stepper Driver.

Click here for the specification of TB6600HG

Features

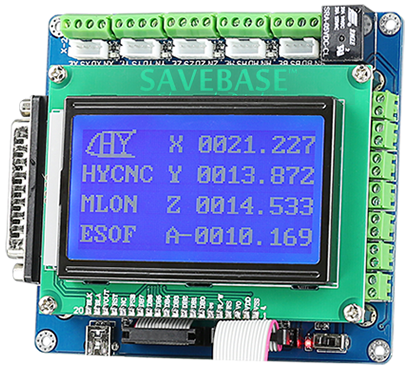

I. 3G 5 Axis Breakout Board
  • High performance, cost-effective.
  • Automatically identify PC and control pad control.
  • Real-time display 4 axis position.
  • Automatically finish Tool-settings on X, Y, Z Axis via the control pad, without the support of the computer.
  • Compatible with parallel port communicate CNC software like Mach2, Mach3, LinuxCNC(EMC2), KCAM4 CNC etc.
  • Support G-Code recording via PC and manual programming via the control pad.
  • Two ways to get power, 5V DC power supply or USB port to get power from PC directly.
  • Compatible with all the 2 phase, 3 phase and 4 phase microstep drivers in the market.
  • One Relay output interface to control the spindle motor, air pump, water pump, etc..
  • 5-axis work LED display, visually display the working condition of the stepper driver controller.
  • 5 input interfaces to set Limit, Estop, Midpoint-Setting, Cutter-presetting/Tool.

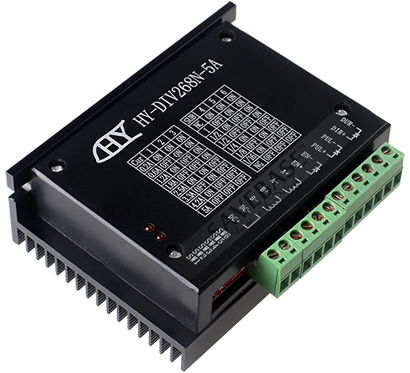

II. TB6600HG Stepper Driver Board Controller
  • High performance, cost-effective.
  • Automatic idle-current reduction.
  • Supply voltage up to 45V DC.
  • Output current up to 5.0A.
  • Suitable for 2-phase and 4-phase motors.
  • High speed optoelectronic isolation signal input.
  • Single-chip PWM bipolar sinusoidal chopper ensures low vibration and high efficiency.
  • 1, 2, 4 (New Mode), 8, 16 adjustable microstep control, motors run more precisely and smoothly.
  • Cooling Aluminium Box Design for Cooling, and protect the driver board from being damaged by dirt, dust or other liquids.
  • Overload, overcurrent, overheat, overvoltage and undervoltage protection to avoid damaging your computer and devices.
III. Stepper Motor GB24H2100-42-4A


Applications

  • Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices.
  • For advising, such as brand, architechture mould, badge, nameplate, display boards, doorplate, furniture decoration, etc..
  • For processing various pattern mould.
This kit is suitable for below typical CNC machines.

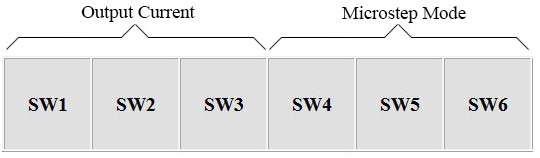

TB6600HG DIP-Switch Settings

Output Current SW1 SW2 SW3 Microstep Mode SW4 SW5 SW6
0.2A ON ON ON N/A ON ON ON
0.6A OFF ON ON 1(Full Step) OFF ON ON
1.2A ON OFF ON 2 ON OFF ON
1.8A OFF OFF ON 2 OFF OFF ON
2.5A ON ON OFF 4 ON ON OFF
3.3A OFF ON OFF 8 OFF ON OFF
4.2A ON OFF OFF 16 ON OFF OFF
5.0A OFF OFF OFF N/A OFF OFF OFF

Interfaces

(3G 5 Axis Breakout Board)

(TB6600HG Stepper Driver)

Connection Diagrams

(Breakout-Board-Wiring)

(TB6600HG-Wiring)

Specifications


Electrical Specifications of Breakout board
Input Voltage 5V DC via power adapter or directly get power from PC via USB port
Version Type Professional version
Drive type Pulse + Direction + Enable Signal Control
Suitable Microstep Driver 2 Phase, 3 Phase, 4 Phase Microstep Driver (M542/M542H/MA860H/3MA2290 etc.)
Operationg Environment & Other Specifications of Breakout Board
Cooling Natural Cooling or Fan Forced cooling
Operating Environment
Environment Avoid dust, oil fog, corrosive gas
Ambient Temperature 0 ℃ ~ 50℃ (32℉ ~ 122℉)
Humidity 40%RH ~ 90%RH
Operating Temperature 70℃ (158℉) Max
Storage Temperature -20 ℃ ~ 65℃ (-4℉ ~ 149℉)
Total Weight Approx. 275g (Breakout Board + Control Pad + Display Panel)
Dimensions 110*110*25mm
Electrical Specifications of TB6600HG Stepper Driver
Input Voltage 12V ~ 45V(Peak) DC
Output Current 0.2A ~ 5.0A (Peak)
Drive Type Pulse + Direction + Enable Signal Control (Single-Chip PWM Bipolar Sine Chopper)
Suitable Motor Nema17, Nema23, Nema24(Rated current: 0.2A-5.0A)
Operationg Environment & Other Specifications of TB6600HG Stepper Driver
Cooling Natural Cooling or Fan Forced cooling
Operating Environment
Environment Avoid dust, oil fog, corrosive gas
Ambient Temperature 0 ℃ ~ 50℃ (32℉ ~ 122℉)
Humidity 40%RH ~ 90%RH
Operating Temperature 70℃ (158℉) Max
Storage Temperature -20 ℃ ~ 65℃ (-4℉ ~ 149℉)
Total Weight Approx. 300g
Dimensions 105*85*35mm
Specifications of Power Supply
Input Voltage 90-132VAC/180-264VAC by switch
Input frequency 47~63Hz
Output voltage 36V
Total current 10A
Vout adjustable range 36V±10%
Size 215*115*50mm
Weight 1100g
Specifications of Stepper Motor
Model GB24H2100-42-4A
Shaft Single Shaft (Diameter:10mm; Length:24mm)
Rated Current 4.2A/Phase
Rated Voltage 3.36V
Step angle 1.8°±5%
Phase 2 Phases
Phase resistance 0.8x(1+10%)Ω/Phase
Phase inductance 4.0x(1+20%)mH/Phase
Step angle 1.8°±5%
Holding torque 4Nm (Approx. 567 Oz-in)
Positioning torque 800gf.cm
Insulation resistance ≥100MΩ (500VDC)
Insulation class Class B
Weight 2.0Kg/Piece
