Battery for 1pack (5S) Brand-new Bosch Cordless 18V 1.5AH Repair Battery pack
adopting Samsung INR18650-15Q 18650 Cell 1500mah 3.6V Li-ion Rechargeable Power Battery Cell
With solder tabs to weld PCB!
Rechargeable Li-ion Power Battery Cell
High power battery cell
High temperature resistance Paper Sleeve
Battery Cell Technical Parameter:
Cell Model: Samsung INR18650-15Q
Discharge Voltage: 2.50V
Discharge current: 0.2C
* Nominal discharge capacity: 1500mah
Maximum continuing discharging current: 18A
Cell Dimension: Height 65 mm, Diameter 18 mm
Battery Pack Spec.:
Assemble: 5S 18Volt 1.5Ah
with Solder tabs for Positive / Negative Pole and Outputs for PCB Connection
Work for: Bosch 18V Lithium series Power Tool battery pack, Ryobi 18V Power tools replace battery.
Half-finished Battery Pack assemble with Brand-new Samsung Original Power cell, with solder tabs to facilitate buyer for DIY welding
There is a slight gap between the batteries (about 1/16 inch, or 1.5-2mm), We welding it a bit loosen as the original packs would have fixing plastic between each cell. You may fix it by yourself.
Battery pack not include PCB and outer shell
Perfect replacement and great cost saving when your old battery cell needs replacing but other inner electronic parts (such as the PCB) are still working good.
Read before ordering:
1. Please make sure your original PCB is in good condition and you are capable to weld the PCB onto the replace battery, because the package is not including the PCB and your power tool will not work without the original PCB or the PCB is already dead.
2. Please check and open up your old battery pack first before ordering and be sure you are capable and clear enough for how to finish the replacing.
3. Be aware of safety, avoid short-circuit and electric-shock when you do the repairing.
4. We are using brand-new Samsung cells and test every single cell before assembling, we choose the cells with good compatibility for total welding. You could check with the battery pack voltage when you first receive the package.
5. Replacing battery requires soldering skill and we are not responsible for any damage or injuries you may incur in the repair and we are not responsible for any damage on your Power Tool.
How to know if my chips are still working good:
you could open up your battery pack, use a multimeter to measure all the cells' voltage, the readings should be between 3.6-4.0V for each single cell. Then all cells are good, the battery just has a faulty chip board, you need a new chip board, NOT this pack.
If the battery cell is a dead cell, the multimeter just read at 0-0.5V, then it shows a dead cell, if any of the cells has such low voltage, you may use this pack to replace the dead pack
Feel free to contact us for any in doubt in any time!

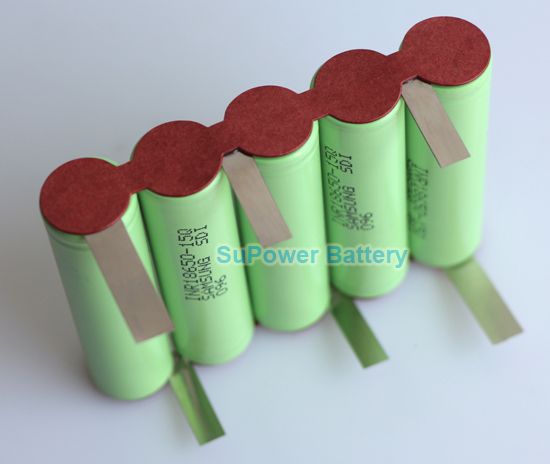

Our replace Pack you will receive:

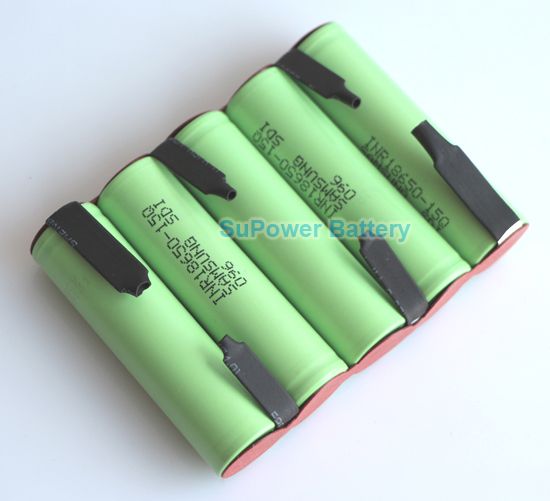

Tabs sealed with insulation tubes, you could use scissors to take it off - But be aware of short-circuit when you are cutting it.

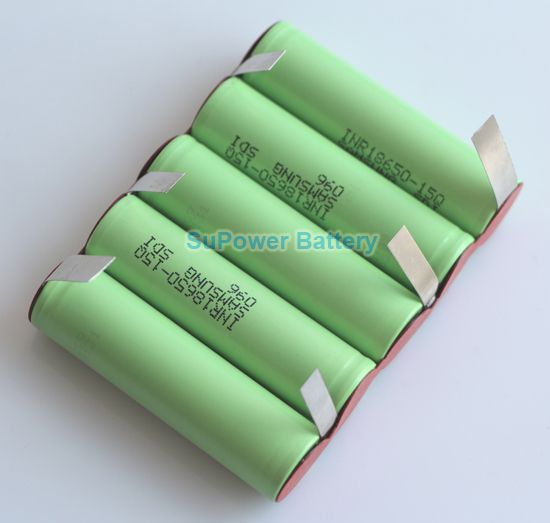

You may also use scissors to shape the terminal tab, use your old battery as a guide.
You could use multimeter to check the output for every tab
* Insulation shim will cover onto the battery pack for transportation.
* Battery tabs will seal with Insulation tubes, you could use scissors to take it off - But be aware of short-circuit when you are cutting it.
* You may also use scissors to shape the terminal tabs!
