Please read everything below before you bid!!! You must understand possible dangers of Li-ion cells before using them. Visit www.batteryuniversity.com to learn more.
This is the best and one of the most versatile chargers we have tried for protected and unprotected 18650 batteries do date. Will charge up to 4 batteries at once at the full rate.
This is the Australian version, not only does it have an Australian plug, it has been certified and approved for electrical safety, energy efficiency and c-ticked so they are legal in Australia. Version 3 is much better than previous versions.
Don't risk it with cheap chargers as not only do half of them that we have tried destroy batteries quickly, they are also dangerous. Even if you don't buy this charger, please contact me if you would like info on some of the really bad chargers out there. Some puff up in smoke when plugged in, some multipurpose fire hazards are just a 12 volt source that will apply a low current continuously regardless of what battery is inserted.

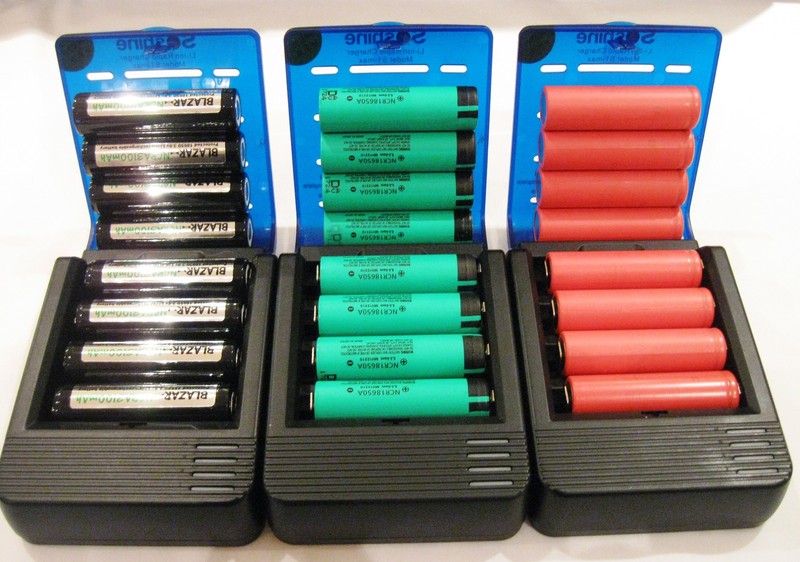

The S1 max-III treats the battery very well. The best we have seen. You can also stack batteries inside the cover (see pics). Very handy.
The S1 max-III will charge each Lithium ion battery at approx 1 amp continuously (not pulsed) independently regardless of the number of other batteries in the unit or the state of charge of the other batteries. This is the only intelligent 18650 specific charger we have found that provides a clean DC charge (so to speak), everything else we have tried (18650 lose cell specific) produces mini-cycles in the battery => wear and tear.
This has FOUR individually controlled circuits, with individual protection devices (including temp sensor) for each circuit. We have tested many of these. The characteristic seem to be as follows :-
On each individual circuit, upon insertion of the battery, the unit will check for polarity (the battery is inserted the correct way around). It will then provide a quick zap to wake up protected batteries. After this, it will check the battery is in the specified voltage range to begin charge. If the battery is very flat, it will charge at 200mA until it reaches approx 3.2volts, then it will continue at 1Amp. For batteries above approx 3.2volts, it will begin at 1amp. Once the battery has begun the saturation phase (90% charged), the device will flash and hold the battery at just under 4.2 volts. The termination current is 50mA. The device will then stop charging. The battery voltage will fall slightly. If the resting battery falls below 4.1volts, it will re-apply a top up charge. Generally, the battery ends up with 4.15volts or so when finished. We have tested many of these time and time again and none of them have ever over-charged a battery. The version 3 is much better than the previous versions. This is the latest packaging.

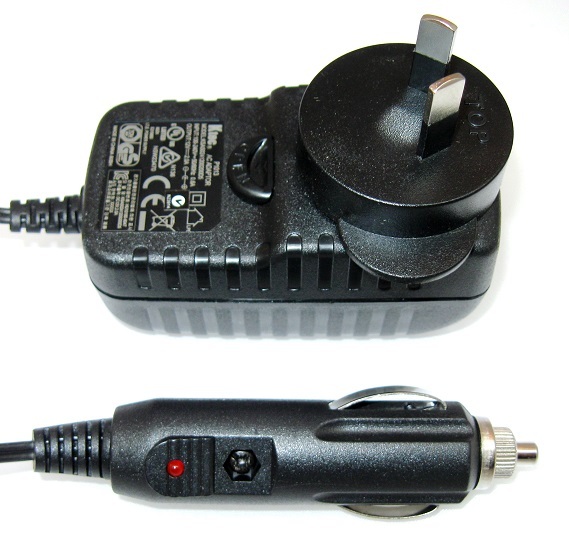

This charger now comes with a new and improved, smaller power pack. It no longer covers the power point switch.
The jack is now a 12volt 2.1x5.5mm standard size.

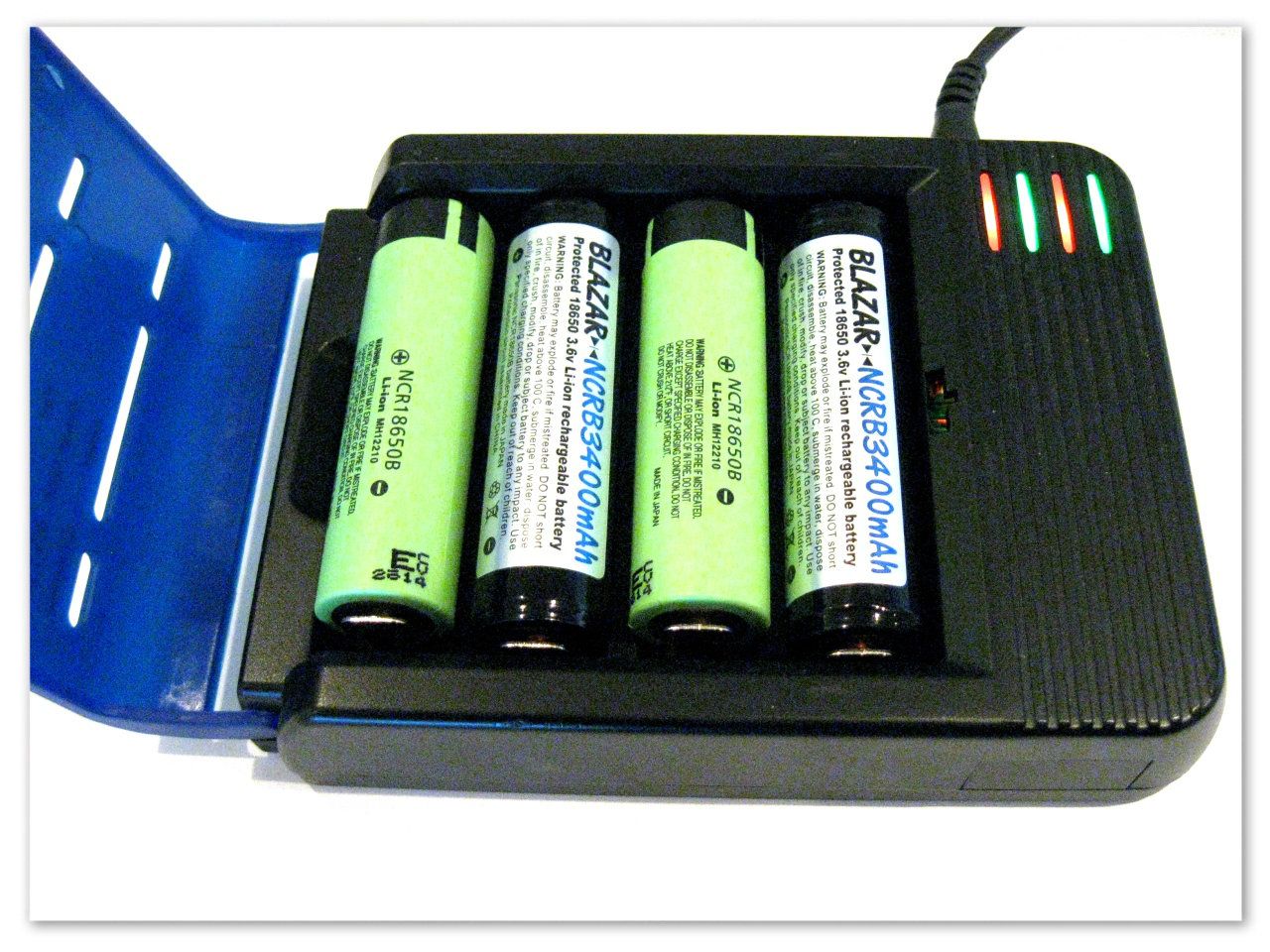

Batteries in the pictures are not included. Free postage. Pickup Welcome. (Beacon Hill NSW)
We also stock very high quality BLAZARProtected REAL 3400mAh batteries incorporating Panasonic NCRB, worlds highest capacity 18650 battery using the highest quality protection circuit we could find.We also stock many other types of HIGH Quality 18650's including Sanyo, Panasonic, solder tabbed and high current IMR's.
Click here to check out my other items
Be sure to add me to your favourites list!
Important tips for using a Li-Ion
Always turn the charger on before inserting batteries
When charging protected batteries, always re-insert or pull
back the batteries several seconds after charging commences.
This breaking of connection /
interruption of the charging cycle will help ensure the over discharge
protection mode of the battery is properly released and help prevent
overloading the charger.
This step is especially important when the batteries
are in protection mode or are fully drained.
See specification below (after pictures).
AUSTRALIAN APPROVED, AUSTRALIAN PLUG AND CAR CHARGER
Now for the supplied tech specs, (grammar corrected).
Soshine Model:SC-S1 max-III (Version 3)
This charger is an intelligent charger especially designed to charge rechargeable 1-4pcs 18650/18650(protected)/17650/18500/17500 Lithium-Ion batteries.
Input: AC100-24V 50/60Hz
Output: DC12V 1800mA
DC car adapter: 12V
DC out: 4.2V 1x1000mA, 2x1000mA, 3x 1000mA, 4x1000mA
Trickle charge: 50mA
Using an adaptor that does not meet these specifications could damage the charger or the adaptor
- End-of-charge voltage detection assures safe and full charge any time
- Short-circuit protection
- Over voltage cut-off protection ------ prevents damage to your battery due to over voltage (4.3V)
- Complete individual channels ------- convenience; prevent batteries from charging each other
- Charge Method :CC/CV -------------- charges battery fully and quickly
- Reverse polarity protection ---------- prevents damage to your batteries and charger
- Time control ----------------------------- 4 individual clocks, shuts down channel after charge of 8 hours
- Temperature control ------------------- temperature >60 degree, the channel shuts down
- Battery reset ----------------------------- resets protected batteries.

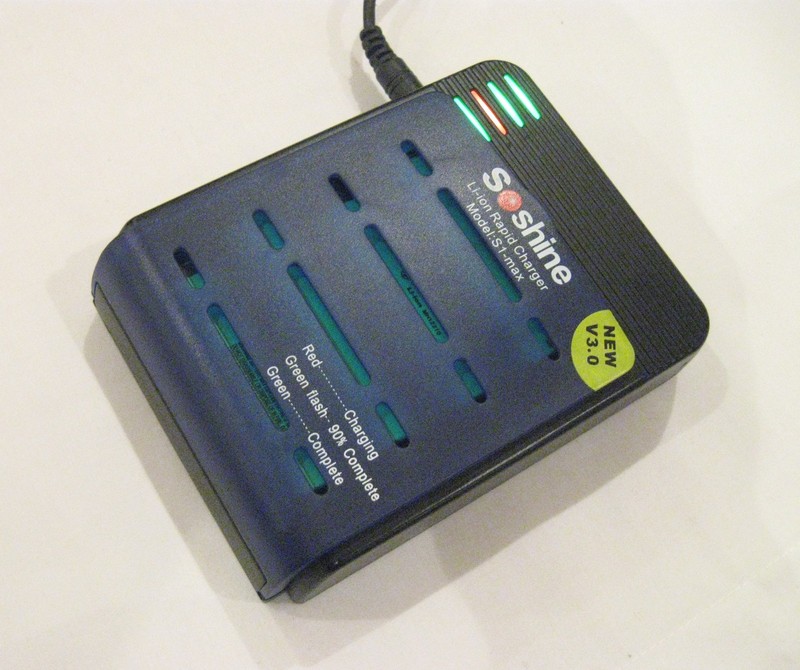

4 LED indicators:
Red on -------------------------------------------------Battery Charging
Green flash ------------------------------------------ Charge 80%-90% complete
Green on --------------------------------------------- Charge 90%-100% complete
Off ------------------------------------------------------Stand by without battery in compartment, loose connections (re-insert battery), polarity reversed (load the battery into charger correctly), battery voltage too low (less than 2.0V)
Red-Green flash (charge time > 5min) ------- Non suitable battery inserted. e.g. Lithium primary, Ni-MH , Ni-Cd, Alkaline, etc., battery voltage too low after 5 minutes of charge (between 2.0V-3.0V), Temperature >60 degree
This chart is for your reference only .The actually time may vary due to many factors.
Instructions for use:

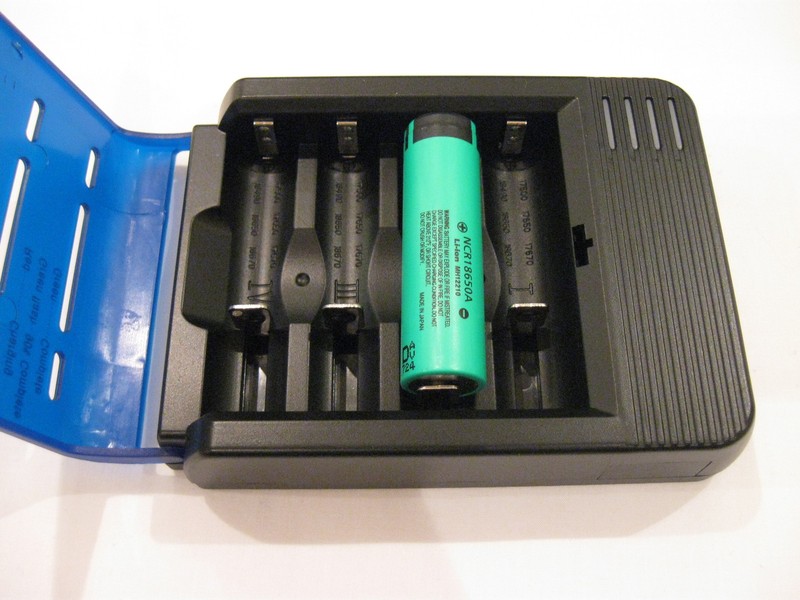

-Insert the rechargeable Li-ion battery into the battery compartment
-Make correct contact for polarity (+ and -) according to the sign in the battery compartment
When using AC adaptor:
Connect the supplied AC adaptor's barrel plug into jack on the back of the charger. Plug the AC adaptor into any available 100-240VAC outlet.
When using in vehicle-DC car adaptor:
Connect the supplied DC car adaptors barrel plug into the chargers DC input jack. Plug the large end of the cord into the 12V car lighter power port
-The Red LED will turn red to indicate proper charging. After the battery is fully charged, the LED will turn green.
-Unplug the charger and remove from the charger when not in use.
Protect the power supply cable for the adaptor against the risk of being trodden on, pinched or folded, particularly near the sockets and the connection with the device
Keep out of the reach of children or pets.
To disconnect the power supply cable, pull on the plug and not on the cord.
If the power supply cable is damaged, stop using the device immediately.
Not charging all the way?
1 Gently rubs battery ends with a clean pencil eraser or cloth to remove any residue
2 Loose connections between battery and charger remove and replace battery into the battery compartment; turn the battery until LED goes from green turn red.
3 Polarity reversed; load the battery into charger the correct way around.
To avoid personal injury and property damage from, but not limited to, the risk of electric shock or fire:
Charge only rechargeable Lithium-Ion batteries. Charging any other types of batteries may cause them to leak, rupture or explode.
Do not open battery, dispose of in fire, put in backwards, mix with used or other battery types or short circuit----may ignite, explode or leak causing injury
Use the charger only in dry locations. Keep away from rain, snow or excessive moisture.
Do not operate the charger if damaged
Do not disassemble, modify any part of the charger ,or attempt to use the chargers as power source
Always unplug the charger from outlet before attempting maintenance or cleaning,
This charger is not a toy and should not be used by children or non experienced persons without adequate training or supervision.
Material: ABS ROHS
One year warranty
This Soshine product is warranted only to the original purchaser upon presentation of proof of purchase, to be free from defects in materials and workmanship for one year from date of original purchase provided that no other repairs, alterations or modifications had been attempted by unauthorized personnel.
Not applicable to damage caused by normal wear and tear or misuse. Repair or replace of charger at Soshine option. For more information, please contact your nearest Soshine sales office.
Please do not hesitate to contact me via eBay or Mob: 0411191352
Use caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mishandled or used in any way not intended by the manufacturer.
Make sure the user has enough knowledge on Li-Ion rechargeable batteries in charging, discharging and assembly before use.
Put the batteries in fire-proof container when charging
Never leave batteries unattended when charging
Do not put batteries on wood surface or carpet when charging
Protective Circuit Board is required when making packs.
Lithium-Ion batteries may explode or catch fire if mistreated.
Do not apply heat, crush, damage or modify.
Do not drop, incinerate or reverse polarity
Do not charge or discharge beyond manufacturers specified current or voltage
Disposal must only be at battery recycling depot.
If you bid, you agree that you and the user have adequate knowledge in handling batteries and chargers of this type and you agree that I will not be held liable for any damage or injury of any kind caused.
In saying the above, this charger is much safer than most of the other similar items sold on eBay.
ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS AND RECOMMENDATIONS FOR USAGE AND APPLICATION.
Some Tips for safer usage and prolonging the life of common types of Li-ion batteries.
Firstly, get yourself a voltmeter.
Never let a Li-ion battery go below the minimum allowable voltage, which is 2.5Volts or 2.75Volts depending on the battery model. Doing so, even for brief periods will permanently damage the battery. It will irreversibly reduce its safety and storage capacity. Dendrites or shunts begin to form between the electrodes inside the cell which could eventually lead to partial or complete internal shorts. They grow like crystals and a combination of factors could lead to eventual failure.
Some factors increasing the likelihood of this happening are the age of the battery, the number of cycles the battery has undergone, the extent and frequency of over discharge, and the charge / discharge currents used. Li-ion packs that have been under stress are more sensitive to mechanical abuse, such as vibration, dropping and exposure to heat.
Lithium-ion operates safely within the designated operating voltages; however, the battery becomes unstable if inadvertently charged to a higher than specified voltage. Prolonged charging above 4.30V forms permanent plating of metallic lithium on the anode, while the cathode material becomes an oxidizing agent, loses stability and produces carbon dioxide (CO2). The cell pressure rises, and if charging is allowed to continue the current interrupt device (CID) responsible for cell safety disconnects the current at 200psi.
Sometimes there may be warning signs of a failing battery and these can include fast self discharge or excessive heat while charging. If this happens or if you have overcharged or over discharged the battery, do not use and send the battery to a recycling depot. The better and newer types of Li-ion batteries include more safety features. Visit Battery University on the internet for more information. Do not abuse Li-ion batteries. Over charging / discharging, excess heat and mechanical abuse are a few things that can lead a battery to thermal runaway. Once this process begins, it cannot be stopped. During thermal runaway, the battery may very rapidly exceed 150DegC and the pressure inside could rise to 500psi. At this point, a safety membrane will burst letting the battery undergo controlled rapid venting with flames. If the device it is installed in leaves nowhere for the pressure to go, the device could explode.
The following examples are an approximate guide only.
Example 1. Sanyo UR18650F 2600mAh, minimum Voltage is 2.75Volts.
At a 3amp continuous discharge, when the voltage under load reaches 2.75 volts, the load must be disconnected. 10 seconds after disconnection, the battery will show approx. 3.4 volts. One minute after disconnection, the voltage will rise to approx 3.5 volts. 24 Hours after, it will show approx. 3.6volts. At 3.6V 24 hour resting, the battery is 98% depleted. It will have approx 50ma remaining capacity and should be recharged before use. At 3.5V 24 hour resting, the battery is 100% depleted and any use without recharging will permanently damage the battery. At 0.5A discharge, the numbers are approx 3.1v, 3.2v and 3.5v respectively.
Example 2. Panasonic NCR18650A 3100mAh, minimum Voltage is 2.5Volts.
At a 3amp continuous discharge, when the voltage under load reaches 2.5 volts, the load must be disconnected. 10 seconds after disconnection, the battery will show approx. 3.1 volts. One minute after disconnection, the voltage will rise to approx 3.2 volts. 24 Hours after, it will show approx. 3.35volts. At 3.35V 24 hour resting, the battery is 98% depleted. It will have approx 50ma remaining capacity and should be recharged before use. At 3.3V 24 hour resting, the battery is 100% depleted and any use without recharging will permanently damage the battery. At 0.5A discharge, the numbers are approx 2.8v, 3.0v and 3.3v respectively.
The rated cycle life is for full charges and discharges. If you do partial cycles, say from 3volts to 4.05volts, you will get around 3 x the number of useful cycles.
Li-ion batteries deteriorate with age. If stored room temp at half charge, the permanent capacity loss is 2% per year. If stored at full charge, they can deteriorate 20% per year. Higher temperatures increase and lower temperatures reduce this. They are shipped from the factory at optimal charge for storage. © SUPERSPORTS600 2011
